Zebronics CFL UPS Zeb-CU5013 with CFL Bulb Holder,Overload Indication,Microcontroller Based,2 pin DC Socket,Short Circuit Protection,Overload Indication

Features-

• CAN BE USED FOR ROUTERS. Noise Level < 40dB
• Introducing Zebronics portable CFL UPS, it is a micro-controller based UPS with direct CFL bulb holder, 3 two-pin DC sockets, and an LED indicator./InputNominal Voltage 220-240 VACVoltage Range 100-300 VACFrequency 50/60 Hz (Auto Sensing)Plug Type 2 Pin Plug
• OutputTransfer Time 100msWaveform (Battery mode) DC OutputNo. of Output Sockets 3Protections Overload, Short Circuit, Over Discharge & Over Charge
• BatteryBattery Type 12V 7Ah x 1noCharging Current 1ARecharge Time 6 hours to charge 90% (after complete discharge)
• IndicatorsNo. Of LEDs 3 LEDsAC Mode Green LEDBattery Mode Yellow LED Light Continuous ONL
• IndicatorsLow Battery Yellow LED Light On/Off every 1 secondOverload Red LED Light On/Off every 0.5 secondFault Red LED Continuous ON
• The UPS is versatile, a must-have essential for stalls, small shops, homes, offices, warehouses.

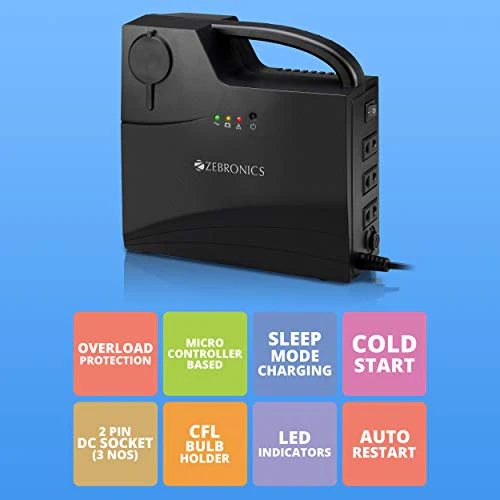

Features

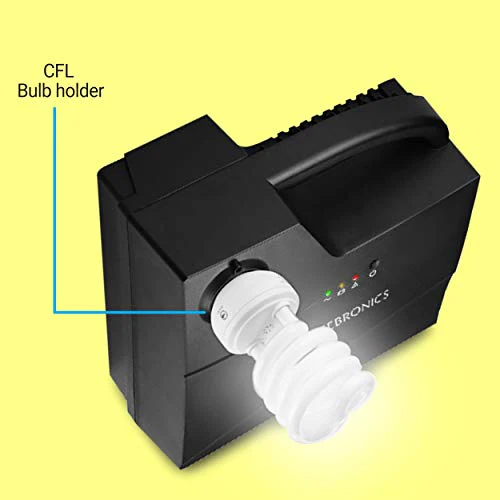

• CFL bulb holder
• Auto restart while AC is recovering
• Overload Indication
• Short Circuit Protection
• Wide Input Range
• Microcontroller Based
• 2 pin DC Socket (3 nos)



Specification

Output



• Voltage Range (AC mode): 230VDC ± 10 %
• Voltage Range (Batt. Mode): 160-230VDC ± 10 %



Battery



• Battery Type: SMF Battery
• Recharge Time: 6 hours for recover to 90% Capacity



Indicators



• AC Mode: Green lighting
• Battery Mode: Yellow lighting
• Low Battery: Yellow flashing every second
• Overload: Red flashing rapidly every 0.5 Sec

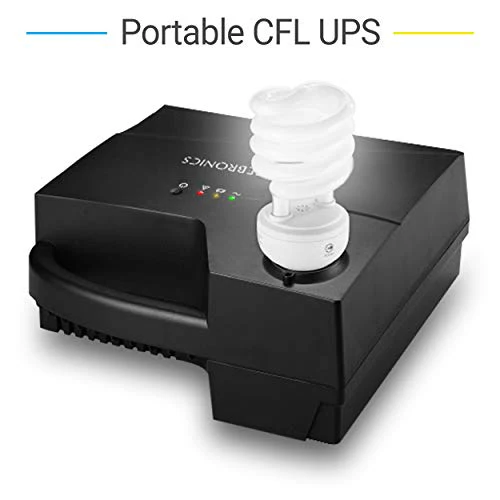

CLF UPS

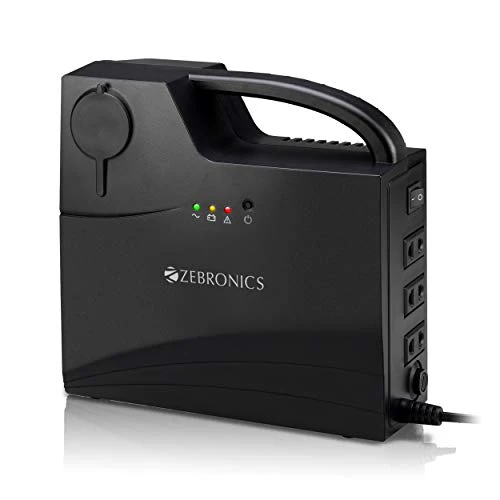

ZEB-CU5013 is a micro-controller based UPS with a CFL Bulb holder, 3 Two-pin DC output sockets and an LED indicator.

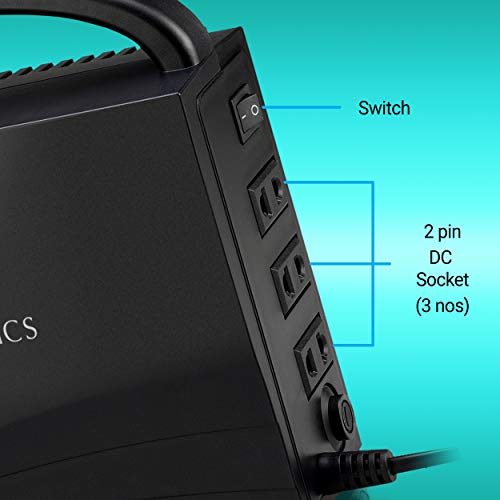

3 Two Pin DC Sockets

CU5013 Comes with 3 two pin DC sockets that can help you charge all your essentials and keep you on top even during a powercut.
